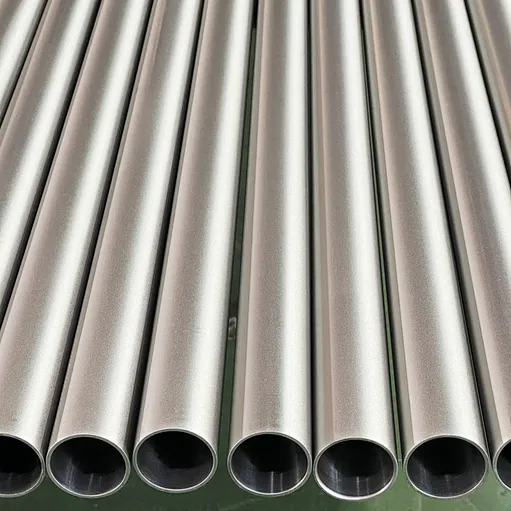

Seamless Stainless Steel TP316 |UNS S31600|1.4401 Tube
Distinguished by its strategic Molybdenum content (2-3%), our TP316 tubing provides significantly enhanced resistance to pitting and crevice corrosion compared to standard 304 grades. These tubes are indispensable for mission-critical applications in marine hardware, chemical reactors, and pharmaceutical processing equipment. Through advanced cold-drawing and precise solution annealing, Tengqi ensures every tube maintains a uniform microstructure and excellent surface finish, delivering reliable performance for the most demanding global industrial needs.
"For applications involving extensive welding, we also provide TP316L (UNS S31603) with lower carbon content to prevent sensitization and maintain intergranular corrosion resistance."
Seamless Stainless Steel TP316 tube (TP316 / UNS S31600 / W.Nr. 1.4401) is the molybdenum-bearing austenitic workhorse, offering improved pitting and crevice corrosion resistance. Manufactured by Tengqi in Fujian, China, every heat is fully traceable, hydro-tested and available with third-party inspection (SGS / BV / TUV) on request.
Product Specifications
- ASTM A213 / ASME SA213 — Seamless
- ASTM A269 / A269M — Seamless & Welded
- ASTM A270 / A270M — Sanitary Tubing
- ASTM A1016 / A1016M — General Requirements
- EN 10216-5 — Seamless Pressure Tubing
- Finishing: solution annealed, pickled & polished; bright annealed available on request
Size Range
| Outside Diameter (OD) | Wall Thickness | Length |
|---|---|---|
| 6.35 mm – 257 mm (1/4"– 10.1") | 0.5 mm – 12.7 mm | ≤ 22 m |
Chemical Composition
TP316 (UNS S31600) — Composition %
| UNS | C | Mn | P | S | Si | Cr | Ni | Mo |
|---|---|---|---|---|---|---|---|---|
| S31600 | ≤ 0.08 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 16.0 – 18.0 | 10.0 – 14.0 | 2.00 – 3.00 |
Mechanical Properties
| Property | Value |
|---|---|
| Delivery Condition | Solution annealed, pickled & polished |
| Tensile Strength | ≥ 515 MPa |
| Yield Strength (0.2% offset) | ≥ 205 MPa |
| Elongation in 2 in. / 50 mm | ≥ 35% |
Physical Properties
| Property | Value |
|---|---|
| Density | 8.0 g/cm3 |
| Thermal Conductivity | 16.3 W/m·K |
| Specific Heat Capacity | 500 J/kg·K |
| Elastic Modulus | 193 GPa |
| Magnetic Properties | Non-magnetic (slightly magnetic when cold worked) |
| PREN (Pitting Resistance Equivalent) | 24.0-26.0 |
