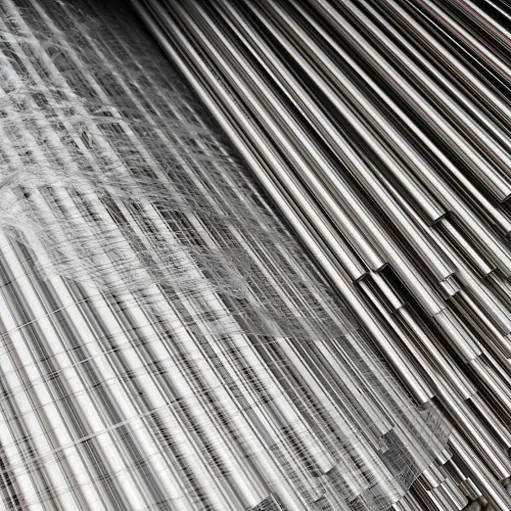

Seamless Stainless Steel TP321H |UNS S32109|1.4878 Tube
Distinguished by an optimized carbon content (0.04–0.10%) and strategic Titanium (Ti) stabilization, our TP321H tubing prevents sensitization and intergranular corrosion while maintaining enhanced mechanical properties at temperatures exceeding 538°C (1000°F). These tubes are indispensable for mission-critical applications in superheater coils, heat exchanger tubing, and high-pressure steam systems. Through advanced cold-drawing and precise solution annealing, Tengqi guarantees a uniform grain size and maximum durability for demanding thermal cycling conditions.
"The 'H' in TP321H stands for high carbon, which is specifically controlled to provide higher creep-rupture strength at temperatures above 1000°F (537°C) compared to standard TP321."
Seamless Stainless Steel TP321H Tube (TP321H / UNS S32109 / W.Nr. 1.4878) is the high-carbon 321 grade, optimized for creep strength in superheater and heat-exchanger service. Manufactured by Tengqi in Fujian, China, every heat is fully traceable, hydro-tested and available with third-party inspection (SGS / BV / TUV) on request.
Product Specifications
- ASTM A213 / ASME SA213 — Seamless
- ASTM A269 / A269M — Seamless & Welded
- ASTM A270 / A270M — Sanitary Tubing
- ASTM A1016 / A1016M — General Requirements
- EN 10216-5 — Seamless Pressure Tubing
- Finishing: solution annealed, pickled & polished; bright annealed available on request
Size Range
| Outside Diameter (OD) | Wall Thickness | Length |
|---|---|---|
| 6.35 mm – 257 mm (1/4"– 10.1") | 0.5 mm – 12.7 mm | ≤ 22 m |
Chemical Composition
TP321H (UNS S32109) — Composition %
| UNS | C | Mn | P | S | Si | Cr | Ni | Ti |
|---|---|---|---|---|---|---|---|---|
| S32109 | 0.04 – 0.10 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 17.0 – 19.0 | 9.0 – 12.0 | 4(C+N)-0.70 |
Mechanical Properties
| Property | Value |
|---|---|
| Delivery Condition | Solution annealed, pickled & polished |
| Tensile Strength | ≥ 515 MPa |
| Yield Strength (0.2% offset) | ≥ 205 MPa |
| Elongation in 2 in. / 50 mm | ≥ 35% |
Physical Properties
| Property | Value |
|---|---|
| Density | 7.9 g/cm3 |
| Thermal Conductivity | 16.1 W/m·K |
| Specific Heat Capacity | 500 J/kg·K |
| Elastic Modulus | 193 GPa |
| Magnetic Properties | Non-magnetic (slightly magnetic when cold worked) |
| PREN (Pitting Resistance Equivalent) | 18.0-20.0 |
Industry Applications
