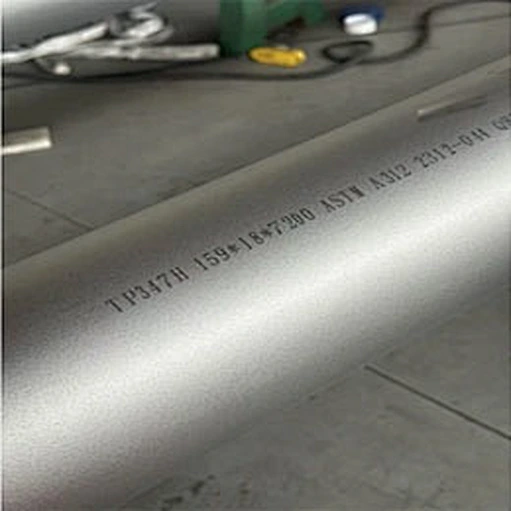

Seamless Stainless Steel TP347H |UNS S34709|1.4912 Tube
Seamless Stainless Steel TP347H tubes are high-performance austenitic stainless steel tubing solutions stabilized with niobium (columbium), specifically engineered for elevated temperature service and enhanced creep resistance. Designed for long-term exposure to high temperatures, Stainless Steel 347H Seamless Tubes (UNS S34709 / DIN 1.4961) provide excellent intergranular corrosion resistance and superior mechanical strength in demanding industrial environments.
Tengqi is a trusted TP347H seamless stainless steel tube manufacturer and supplier based in Fujian, China, with extensive experience in precision pipe manufacturing. We produce premium-quality SS 347H seamless tubes that meet strict international quality standards and high-pressure application requirements.
Standards & Specifications
Our TP347H seamless tubes are manufactured in compliance with:
ASTM A213/ASME SA213/DIN 1.4961/UNS S34709
Key Features of TP347H Seamless Tubes
Excellent high-temperature strength and creep resistance
Superior resistance to intergranular corrosion
Good oxidation resistance in elevated temperature environments
Stable mechanical properties under pressure
Precise dimensional tolerances and smooth surface finishes
We offer a comprehensive range of outer diameters, wall thicknesses, and pressure ratings to meet diverse industrial specifications. Custom cut-to-length services and bulk supply options are available for EPC contractors and large-scale industrial projects.
"Our precision-controlled Niobium content (Nb ≥ 8 X C) ensures complete stabilization of carbides, providing maximum resistance to sensitization and intergranular attack even after welding."
Seamless Stainless Steel TP347H Tube (TP347H / UNS S34709 / W.Nr. 1.4912) is the high-carbon 347 grade with superior creep and stress-rupture strength above 540 °C. Manufactured by Tengqi in Fujian, China, every heat is fully traceable, hydro-tested and available with third-party inspection (SGS / BV / TUV) on request.
Product Specifications
- ASTM A213 / ASME SA213 — Seamless
- ASTM A269 / A269M — Seamless & Welded
- ASTM A270 / A270M — Sanitary Tubing
- ASTM A1016 / A1016M — General Requirements
- EN 10216-5 — Seamless Pressure Tubing
- Finishing: solution annealed, pickled & polished; bright annealed available on request
Size Range
| Outside Diameter (OD) | Wall Thickness | Length |
|---|---|---|
| 6.35 mm – 257 mm (1/4"– 10.1") | 0.5 mm – 12.7 mm | ≤ 22 m |
Chemical Composition
TP347H (UNS S34709) — Composition %
| UNS | C | Mn | P | S | Si | Cr | Ni | Nb |
|---|---|---|---|---|---|---|---|---|
| S34709 | 0.04 – 0.10 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | ≤ 1.00 | 17.0 – 20.0 | 9.0 – 13.0 | 8xC-1.10 |
Mechanical Properties
| Property | Value |
|---|---|
| Delivery Condition | Solution annealed, pickled & polished |
| Tensile Strength | ≥ 515 MPa |
| Yield Strength (0.2% offset) | ≥ 205 MPa |
| Elongation in 2 in. / 50 mm | ≥ 35% |
Physical Properties
| Property | Value |
|---|---|
| Density | 7.9 g/cm3 |
| Thermal Conductivity | 16.1 W/m·K |
| Specific Heat Capacity | 500 J/kg·K |
| Elastic Modulus | 193 GPa |
| Magnetic Properties | Non-magnetic (slightly magnetic when cold worked) |
| PREN (Pitting Resistance Equivalent) | 18.0-20.0 |
Industry Applications
