Seamless Super Duplex Steel S32950 |UNS S32950|1.4655 Pipe
Designed for superior reliability in chloride-rich media, our S32950 super duplex pipes offer an optimized Pitting Resistance Equivalent Number (PREN), ensuring exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking (SCC). With a yield strength nearly double that of standard austenitic stainless steels, these pipes allow for thinner wall designs and enhanced pressure ratings in heat exchangers, chemical processing, and maritime infrastructure. Through advanced cold-drawing and specialized solution annealing, ensures every pipe maintains optimal phase balance and precise dimensional tolerances for mission-critical industrial applications.
"Our S32950 pipes offer an optimized PREN value tailored for brackish water and industrial chemical media, providing extreme durability at a competitive cost."

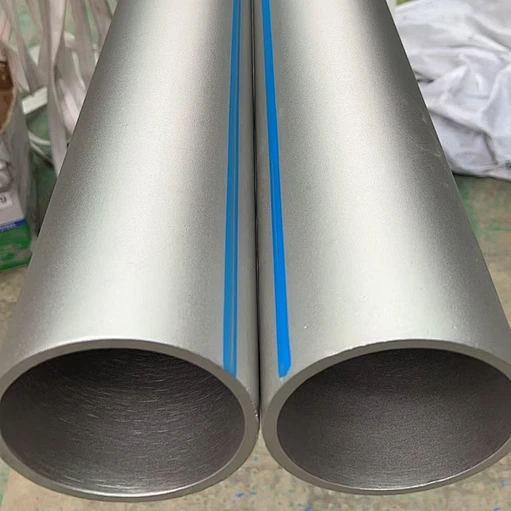

Seamless Super Duplex Steel UNS S32950 Pipe (S32950 / UNS S32950 / W.Nr. 1.4655) is a high-chromium super duplex grade with excellent resistance to chloride pitting and erosion. Manufactured by Tengqi in Fujian, China, every heat is fully traceable, hydro-tested and available with third-party inspection (SGS / BV / TUV) on request.
Product Specifications
- ASTM A790 / ASME SA790 — Seamless & Welded
- ASTM A999 / A999M — General Requirements
- EN 10216-5 — Seamless Pressure Tubing
- Finishing: solution annealed, pickled & polished; bright annealed available on request
Size Range
| Outside Diameter (OD) | Wall Thickness | Length |
|---|---|---|
| 6 mm – 1016 mm (1/4"– 40") | 0.5 mm – 65 mm | 6 m / 12 m, or as required |
Chemical Composition
S32950 (UNS S32950) — Composition %
| UNS | C | Mn | P | S | Si | Cr | Ni | Mo | N |
|---|---|---|---|---|---|---|---|---|---|
| S32950 | ≤ 0.030 | ≤ 2.00 | ≤ 0.035 | ≤ 0.010 | ≤ 0.60 | 26.0 – 29.0 | 3.5 – 5.2 | 1.00 – 2.50 | 0.15 – 0.35 |
Mechanical Properties
| Property | Value |
|---|---|
| Delivery Condition | Solution annealed, pickled & polished |
| Tensile Strength | ≥ 690 MPa |
| Yield Strength (0.2% offset) | ≥ 480 MPa |
| Elongation in 2 in. / 50 mm | ≥ 20% |
Physical Properties
| Property | Value |
|---|---|
| Density | 7.8 g/cm3 |
| Thermal Conductivity | 17.0 W/m·K |
| Specific Heat Capacity | 480 J/kg·K |
| Elastic Modulus | 200 GPa |
| Magnetic Properties | Magnetic |
| PREN (Pitting Resistance Equivalent) | 38.0-42.0 |
Industry Applications
